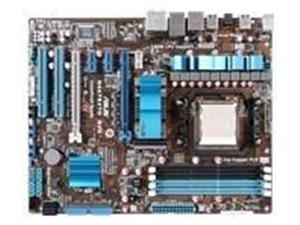

MAINBOARD ASUS M4A79XTD EVO/USB3 (790X) ATX, SOK.AM3 DDR3

Descrizione

CPU AMD
Supports 45nm CPU Socket AM3 ;Phenom™ II/Athlon™ II/Sempron™ 100 Series Processors
Chipset AMD 790X/SB750
test 5200/Up to ; HyperTransport™ 3.0 MT/s
Memoria 4 x DIMM, 16 GB, DDR3 1800(O.C.)/1600/1333/1066 ECC,Non-ECC,Un-buffered Memory
Dual Channel memory architecture
Slot di EspansionE x PCIe 2.0 x16 , support ATI CrossFireX™ technology (at one x16 or dual x8 link)
2 x PCIe x1 2
2 x PCI 2.2
2
Storage SB750 Chipset
UltraDMA 133/100/66 1 xfor up to 2 PATA devices
6 xSATA 3 Gb/s ports 0,1,5,10,JBOD
Support RAID External SATA 3Gb/s port (SATA on-the-go)
1 x Internal SATA 3Gb/s port(black)
1 x Marvell 88SE6121 SATA controller
LAN Realtek® 8112L Gigabit LAN controllers
Audio VIA® VT1708S 8-Channel High Definition Audio CODEC
DTS Surround Sensation UltraPC
Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
Optical S/PDIF Out ports at back I/O
ASUS Noise Filtering
IEEE 1394 2 VIA® VT6315N controller supports x 1394a ports (1 at mid-board; 1 at back panel)
USB USB 2.0 ports (4 ports at mid-board, 8 ports at back panel) 12
ASUS AI Lifestyle ASUS Power Solutions:
- ASUS New-Gen. 8+2 Phase Power Design
- ASUS Anti-Surge Protection
ASUS Green Design:
- EPU
Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Stylish heat-sink solution
- ASUS Q-Fan2
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS CrashFree BIOS 3
- ASUS O.C. Profile
- ASUS EZ Flash 2
Caratteristiche di Overclock Intelligent overclocking tools
- AI Overclocking (intelligent CPU frequency tuner)
- TurboV
- Turbo Key
Precision Tweaker - vDIMM: 25-step DRAM voltage control 50 -step DRAM voltage control
- vChipset 16-step voltage control
- vCore: Adjustable CPU voltage at 0.0125V increment 0.0125V 2
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 600MHz 1MHz increment
- PCI Express frequency tuning from 100MHz 150MHz at 1MHz
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Caratteristiche Speciali
100% All High-quality Conductive Polymer Capacitors!
ASUS MyLogo 2
AMD OverDrive Support*
*Advanced cooling system is required when advanced overclock functions of AMD OverDrive are enabled.

Porte I/O Pannello Posteriore
1 x PS/2 Keyboard port (Purple)
1 x PS/2 mouse port (Green)
1 x S/PDIF Out port (Optical)
1 x eSATA
1 x IEEE 1394a port
1 x LAN (RJ45) port
8 x USB 2.0/1.1 ports
8-Channel Audio I/O ports
Connettori I/O Interni x USB connectors (4 ports)
2 1 x COM connector
1 x Chassis Intrusion
Front panel audio connector
1 x S/PDIF Out header

CD audio in
24-pin ATX Power connector
4-pin ATX 12V Power connector
x IDE connector
1 x SATA connectors
7 x IEEE 1394a connector
1 x CPU Fan connector
1 x Chassis Fan connector
2
1 System Panel (Q-Connector)

BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Gestibilità WOR by Ring,WOL by PME,WOR by PME,Chasis Intrusion,WOR by PME
Accessori
User's manual
x I/O Shield
1 2-in-1 Q-connector (USB, System panel; Retail version only) x UltraDMA 133/100/66 cable
1 x SATA cable
4
CD di Supporto Drivers
AMD OverDrive Utility (AOD)
Express Gate
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Dimensioni
ATX Form Factor
12 inch x 9.6 inch 30.5 cm x 24.4 cm )
