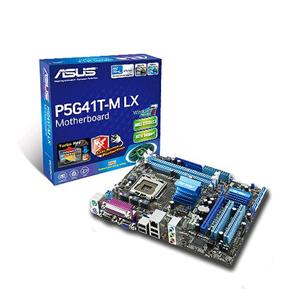

MAINBOARD ASUS P5G41T-M LX SOK.775 MATX, DDR3

Descrizione

FSB 1333/1066/800MHz
Dual-channel DDR3 1333(OC)/1066/800
ASUS Anti-Surge
ASUS Turbo Key
Supporto DirectX10
Express Gate & EPU
Specifiche tecniche


--------------------------------------------------------------------------------
CPU Intel Socket 775 Core™2 Quad/Pentium® dual-core/Core™2 Extreme/Core™2 Duo/Celeron dual-core /Celeron® Processors Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU
*Refer to www.asus.com for Intel CPU support list

Chipset G41 /ICH7
Front Side Bus 1333/1066/800 MHz
Memoria 2 x240-pin DIMM, 8 GB, DDR3 1333(O.C.)/1066/800 Non-ECC,Un-buffered Memory
Dual Channel memory architecture
** Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
*** When installing total memory of 4GB capacity or more, Windows® 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended.
Slot di Espansione
x PCIe x16 1 x PCIe x1 1
x PCI
2
VGA Integrated Intel GMA X4500 graphics
Maximum shared memory of 1G
Supports RGB with max. resolution 2048 x 1536 (@75Hz)
Supports Microsoft® DirectX® 10
Storage Southbridge
UltraDMA 100/66/33 1 x
4 xSATA 3 Gb/s ports
LAN PCIe Gb LAN
Audio ALC887 8-Channel AUDIO CODEC
*Choose the chassis with HD audio module in front panel to support 8-Channel audio output
Supports Jack-detect and Multi-Streaming teconologies
Supports S/PDIF out interface
USB USB 2.0 ports (4 ports at mid-board, 4 ports at back panel) 8
ASUS AI Lifestyle ASUS MyLogo 2
ASUS EZ Flash 2
ASUS CrashFree BIOS 3
ASUS Q-Fan
ASUS Anti-Surge
ASUS EPU-L
ASUS Express Gate
Turbo Key
AI NET2

Caratteristiche di Overclock SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz to 800MHz 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)

Porte I/O Pannello Posteriore x Parallel
1 x D-Sub
1 3 x Audio jacks x PS/2 Keyboard
1 x PS/2 Mouse
1 x RJ45 port
1 x USB 2.0/1.1
4 x COM port
1
Connettori I/O Interni x USB connectors support additional 4 USB 2.0 ports
2 1 x High Definition front panel audio connector
1 x S/PDIF Out connector
1 x System Panel
1 x Internal Speaker connector
24-pin EATX power connector
4-pin ATX 12V Power connector
x IDE connector
1 x SATA connectors
4 x CPU Fan connector
1 x Chassis Fan connector
1
BIOS 8 Mb Flash ROM , AMI BIOS, PnP, DMI2.0, WfM2.0, ACPI2.0, SMBIOS 2.5

Accessori User's manual
I/O Shield x UltraDMA 133/100/66 cable
1 x SATA cable
2
CD di Supporto Drivers
ASUS PC Probe II
Anti-virus software (OEM version)
ASUS Update

Dimensioni uATX Form Factor
9.6 inch x 7.9 inch 24.4 cm x 20.1 cm )
