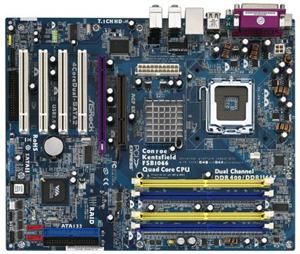

MAINBOARD ASROCK 4COREDUAL-SATA2 PT880, ATX ,SOK775, 2XDDR2667/DDR400, PCIE/AGP, SATA, RETAIL

Descrizione

General
CPU - LGA 775 for Intel® Core™ 2 Quad* / Core™ 2 Extreme* / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D, supporting Quad Core Kentsfield processors
- FSB 1066/800/533 MHz
- Supports Hyper-Threading Technology
- Supports Untied Overclocking Technology
- Supports EM64T CPU

*When you adopt Quad Core CPU, FSB may be reduced 5%

Chipset - Northbridge: VIA® PT880 Pro/PT880 Ultra
- Southbridge: VIA® VT8237S
Memory - Dual Channel DDR/DDRII memory technology*
- 2 x DDRII DIMM slots
- Supports DDRII667/533 non-ECC, un-buffered memory
- Max. capacity: 2GB
- 2 x DDR DIMM slots
- Supports DDR400/333/266 non-ECC, un-buffered memory
- Max. capacity: 2GB

*DDRII and DDR are supported separately

BIOS - 4Mb AMI BIOS
- AMI Legal BIOS
- Supports "Plug and Play"
- ACPI 1.1 Compliance Wake Up Events
- Supports jumperfree
- SMBIOS 2.3.1 Support
Audio, Video and Networking
Graphics - n/a
Audio - 7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec)
LAN - VIA® PHY VT6103
- Speed: 10/100 Ethernet
- Supports Wake-On-LAN
Expansion / Connectivity
Slots - 4 x PCI slots
- 1 x PCI Express Graphics slot
- 1 x AGP 8X slot
Connector - 2 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1 and JBOD) and Hot Plug functions
- 2 x ATA133 IDE connectors (support 4 x IDE devices)
- 1 x Floppy connector
- 1 x IR header
- 1 x Game header
- 1 x HDMI_SPDIF header
- CPU/Chassis FAN connector
- 20 pin ATX power connector
- 4 pin 12V power connector
- CD in header
- Front panel audio connector
- 2 x USB 2.0 headers (support 4 USB 2.0 ports)
Rear Panel I/O HD 8CH I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x Serial Port: COM1
- 1 x Parallel Port (ECP/EPP Support)
- 4 x Ready-to-Use USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Other Features / Miscellaneous
Hybrid Booster - CPU Frequency Stepless Control
- ASRock U-COP
- Boot Failure Guard (B.F.G.)
Support CD - Drivers, Utilities, AntiVirus Software (Trial Version)
Accessories - Quick Installation Guide, Support CD, I/O Shield
- Floppy/ATA 133 cables
- 1 x SATA data cable (optional)
- 1 x SATA 1 to 1 power cable (optional)
- 1 x HDMI_SPDIF cable (optional)
Hardware Monitor - CPU Temperature Sensing
- Chassis Temperature Sensing
- CPU Fan Tachometer
- Chassis Fan Tachometer
- CPU Quiet Fan
- Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
OS - Microsoft® Windows® 2000 / XP / XP 64-bit / Vista™ / Vista™ 64-bit compliant
Certifications - FCC, CE, WHQL
LGA 775 for Intel® Core™ 2 Quad / Core™ 2 Extreme / Core™ 2 Duo / Pentium® XE / Pentium® D / Pentium® Dual Core / Pentium® 4 / Celeron® / Celeron® D, supporting Quad Core Kentsfield processors
VIA® PT880 Pro/PT880 Ultra Chipsets
Supports FSB1066/800/533MHz processors and H-T Technology
Supports Dual Channel DDRII667 (DDRII x 2 DIMM slots) and DDR400 (DDR x 2 DIMM slots)
Untied Overclocking : During Overclocking, FSB enjoys better margin due to fixed AGP/PCIE/ PCI Buses
1 x PCI Express Graphics slot
1 x AGP 8X slot
Hybrid Booster - Safe Overclocking Technology
2 x Serial ATAII 3.0 Gb/s connectors, support RAID (RAID 0, RAID 1, and JBOD) and Hot Plug functions
HDMI_SPDIF header, providing SPDIF audio output to HDMI VGA card, allows the system to connect HDMI Digital TV/projector/LCD devices.
7.1 CH Windows® Vista™ Premium Level HD Audio (ALC888 Audio Codec), 10/100 Ethernet LAN
Windows® Vista™ Premium 2007 Logo Ready
HD 8CH I/O: 4 ready-to-use USB2.0 ports, HD 7.1 channel audio jacks
