WIRELESS SCHEDA DI RETE PCI TP-LINK 450MBPS Dual Band Cod. TL-WDN4800-10

Descrizione

Dual Band support - 2.4GHz or 5GHz channels bring an optimized HD video streaming, file sharing and online experience.
- Today’s fastest wireless speeds of up to 450Mbps.
- Three antennas increase wireless performance and stability.

What This Product Does

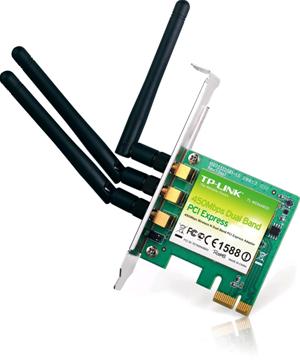

TP-LINK’s 450Mbps Wireless N Dual Band PCI Express Adapter, TL-WDN4800 allows you to connect a desktop computer to a wireless network and access a high-speed wireless network connection. Complying with IEEE 802.11a/b/g/n, the device can use the 2.4GHz or 5GHz channels and provide wireless speeds of up to 450Mbps which is ideal for users seeking a highly robust, bandwidth intensive wireless networking experience, particularly with HD video streaming and online gaming.

Dual Band
Dual Band is the latest wireless technology allowing the adapter to connect with a 2.4GHz or 5GHz network. This allows you to check e-mail and browse the Internet using the 2.4GHz band or stream HD movies and other media on the 5GHz band. The advantage of working on the 5GHz band is that, unlike the crowded 2.4GHz band shared with microwaves, cordless phones and other wireless networks, it has much less interference and can provide a more stable wireless signal, which is ideal for online gaming and HD video streaming.

Wireless N Speed up to 450Mbps
Both the adapter’s 2.4GHz and 5GHz bands support the maximum speed of up to 450Mbps, which generates a maximum theoretical wireless throughput bringing you a limitless wireless experience.

WPA / WPA2 Encryptions - Advanced Security
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.

Easy Operation
TL-WDN4800 comes with a CD utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which makes setting up your network so easy that even for novice users should be up and running in minutes.

- Achieves a maximum theoretical throughput of up to 450Mbps.
- Supports dual-band, 2.4GHz or 5GHz.
- Seamlessly compatible with 802.11a/b/g/n products.
- Experience smoother video streaming and online gaming by choosing the clearer 5GHz band for wireless connections.
- Supports 64/128 WEP, WPA /WPA2/WPA-PSK/WPA2-PSK(TKIP/AES), supports IEEE 802.1X.
- Supports Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit.
- Supports ad-hoc and infrastructure mode.
- Bundled utility provides quick & hassle-free installation.
Networking
Tecnologia di connessione Wireless
Connettività
Interfaccia host PCI-E
Collegamento PC
Drive ottico
Intefaccia WLAN
Interno
Connettività
Quantità porte Ethernet LAN (RJ-45) 0
Connettività
Connettore 3x RP-SMA
Connettività
Porta parallela 0
Ampiezza di banda
Velocità massima di trasmissione 450 Mbit/s
Velocità di trasferimento dati supportate 11, 54, 450Mbit/s
Networking
Chipset -
Networking
Collegamento ethernet LAN
Certificati di sicurezza
Standard di rete IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x
Networking
Modulazione 16-QAM,64-QAM,BPSK,CCK,DBPSK,DQPSK,OFDM,QPSK
Banda di frequenza 2.400 - 2.4835, 5.180-5.240, 5.745-5.825
Caratteristiche Wireless LAN
Connessione WLAN
Networking
Tipo wireless LAN 802.11a,802.11b,802.11g,802.11n
Caratteristiche Wireless LAN
Velocità trasferimento dati WLAN 1,2,6,9,11,12,18,24,36,48,54,450
Antenna
Antenna
Aumento 2 dBi
Antenna
Tipo connettore antenna RP-SMA
Dettagli tecnici
Plug & Play
Collegamenti wireless
Dettagli tecnici
Alimentazione USB
Colori
Colore del prodotto Black,Silver
Sistema operativo/software
Windows operating systems supported Windows 7 Home Premium,Windows 7 Home Premium x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows XP Home,Windows XP Home x64
Certificati di sicurezza
Certificazione CE, FCC, Wi-Fi
Certificati di sicurezza
RoHS compliance
Requisiti di sistema
Connessione a Internet
Unità CD/DVD-ROM necessaria
Requisiti di sistema
Compatibilità Mac
Sicurezza
Algoritmi di sicurezza supportati 128-bit WEP,64-bit WEP,TKIP,WPA,WPA-PSK,WPA2,WPA2-PSK
Condizioni ambientali
Intervallo di temperatura di funzionamento 0 - 40
Intervallo di temperatura -40 - 70
Condizioni ambientali
Range di umidità di funzionamento 10 - 90
Umidità 5 - 90
Contenuto dell'imballo
Guida rapida
Supporti media
