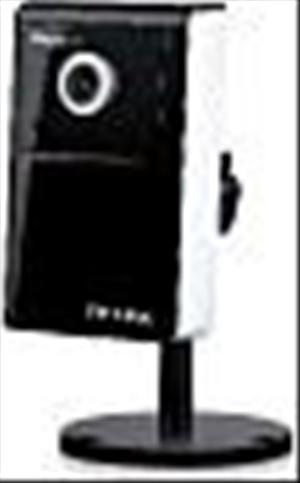

VIDEOCAMERA IP di Sorveglianza H 264, Megapixel TP LINK, Cod. SC3430-20

Descrizione

What This Products Does
With the built-in high performance 1.3Mega-Pixel sensor, TL-SC3430 is adequate for the home, shop, bank, office and other building surveillance where clearer video and more image detail are required. What is more exciting is that wherever you are, high definition video can be delivered to you with the most fluidity, through a standard web browser or 3G device so that you will be to keep you close to what you care for most.
Featuring a simple installation, event alerts, 2-way audio and other practical functions, TL-SC3430 is absolutely a perfect solution for the advanced viewer with attention to detail.

1.3 Megapixel HD Imaging for Identification Surveillance
Equipped with high performance 1.3Mega-Pixel sensor, it can provide HD images that are more useful, with more image detail and wider scene coverage for identification, such as faces of people or the nameplate of car.

Advanced H.264 Codec, Brings you the perfect smooth video
H.264 is an advanced video compressing technologies, which can reduce the size of a digital video file greatly (up to 80%) without compromising image quality. While H.264 provides savings in network bandwidth and storage costs, and much higher video quality can be achieved for a given bit rate.

Intelligent Surveillance Functionality
The TL-SC3430 automatically records video when needed, detects unexpected intrusions and alerts users via e-mail when motion is detected. It also supports digital input/output for external sensors and alarms.

Multiple Easy Remote Viewing Options
The TL-SC3430 provides users with abundant flexible remote viewing options. Users can look in on their cameras via the internet from their 3G mobile phones, laptops, or tablets, such as an Android ™ phone or 3G enabled iPad ™.

16-channel Management Software
The TL-SC3430's bundled surveillance software assists users with managing multiple cameras at the same time. With it, video from 16 cameras can be displayed on one screen. Users can archive streamed video and audio straight to their hard drives, playback video, and monitor up to 16 cameras on a single screen.

2-Way Audio Communication
With the TL-SC3430's built-in microphone or one purchased separately, users can hear what's happening within range of their cameras remotely. What's more , by connecting an external speaker to the TL-SC3430, users may also speak to someone near the camera or give a public address depending on the speaker's strength. This brings users more convenience allowing for better communication when monitoring their cameras from a remote location.

Easy Remote Access-DDNS & UPnP
Without remembering the numeric IP address, The DDNS feature enables you to remotely access the camera by typing an easy-to-remember domain name (e.g. www.mycamera.com) to a browser especially when the IP address of the camera is always changed by your Internet Service Provider. Besides, if the camera is connected with a router and set up in the local area network, UPnP function can facilitate you to access the camera easily without any complicated operations in the router and camera.
* Users need to register a self-owner domain name in a DDNS server
Formati di compressione video MJPEG/MPEG-4/H.264
Risoluzione massima 1280 x 1024 Pixels
Motion JPEG frame rate 30 fps
Frame rate 30 fps
Macchina fotografica
Angolo visuale (orizzontale) 46 °
Angolo visuale (verticale) 46 °
Velocità otturatore 1/4 - 1/17780 s
Sensore d'immagine
Tipo sensore CMOS
Dimensioni sensore ottico 1/1.57 cm (1/4 ")
Sistema di lente
Zoom digitale 10 x
Audio
Sistema audio full duplex Si
Microfono incorporato Si
Detettore audio Y
Sicurezza
Riconoscimento movimento video Y
Networking
Tecnologia di cablaggio 10/100Base-T(X)
IP address filtering Y
Protocolli di rete supportati Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS, DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP, 3GPP/ISMA RTSP
Gestione energetica
Alimentazione 12VDC
Supporto Power over Ethernet (PoE) N
DC-in jack Si
Connettività
Microfono, spinotto d'ingresso N
Quantità porte Ethernet LAN (RJ-45) 1
Uscita audio 1
Dettagli tecnici
Illuminazione min. 0.5 Lux
Tasto reset Y
Plug & Play Si
Scansione progressiva Y
Condizioni ambientali
Intervallo di temperatura di funzionamento 0 - 40 °C
Range di umidità di funzionamento 10 - 90 %
Intervallo di temperatura -40 - 70 °C
Umidità 5 - 90 %
Peso e dimensioni
Dimensioni (LxPxA) 96 x 58 x 31 mm
Illuminazione/Allarmi
Indicatore (LED) alimentazione Y
Caratteristiche di gestione
Gestione web-based Y
Firmware aggiornabile Si
Certificati di sicurezza
Certificazione CE, FCC, RoHS
Sistema operativo compatibile Windows 98/ME/2000/2003/XP/Vista/7, Mac OS, Linux
Requisiti di sistema
Processore minimo Core Duo 2.8GHz
RAM minima 1024 MB
Minima memoria video card 256 MB
Focalizzare
Regolazione messa a fuoco Y
