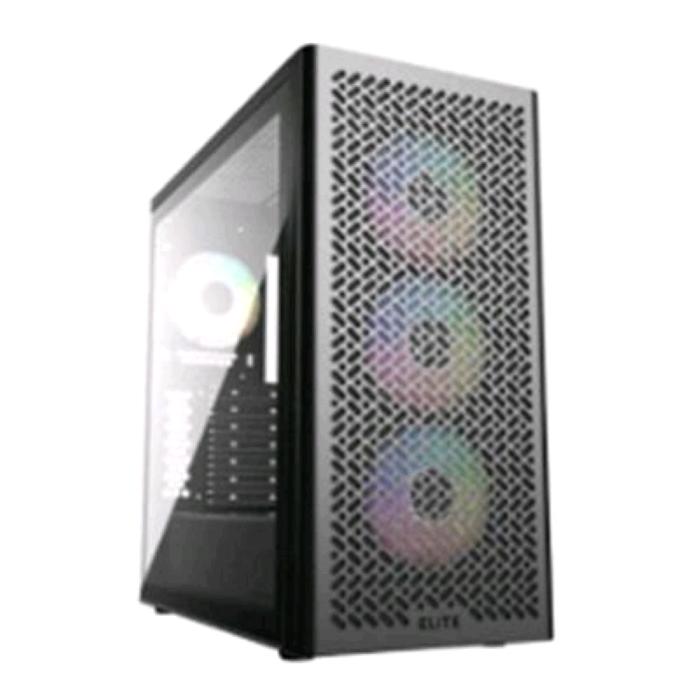

CASE MIDI ATX COOLER MASTER E502-KGNN-SAZ ELITE 502 4 FAN ATX 2X3.5 2X2.5 USB3.0 4X120MM-ARGB NOALIM VETRO

Product Name
ELITE 502

Materials – Exterior
Steel

Materials – Right Side Panel
Steel

Materials – Left Side Panel
TG

Dimensions (L x W x H)
474 × 230 × 481 mm (Incl. Protrusions)
435 × 230 × 465 mm (Excl. Protrusions)

Volume (Incl. Protrusions)
49.73 L

Motherboard Support
ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX
(*up to 12" × 10.9" / 30.5 × 27.7 cm motherboards, may impact cable management)

Expansion Slots
7

5.25" Drive Bays
N/A

3.5" Drive Bays
2

2.5" Drive Bays
2 (Max. 6)

I/O Panel – USB Ports
1x USB 3.2 Gen1 Type-A
1x USB 3.2 Gen1 Type-C

I/O Panel – Audio In / Out
3.5 mm Combo x1

Fan Support – Front
(Filtered) 140 mm x3 / 120 mm x3

Fan Support – Top
(Filtered) 140 mm x2 / 120 mm x3

Fan Support – Rear
1x 120mm

Pre-installed Fans – Front
3x 120mm ARGB Fans

Pre-installed Fans – Top
N/A

Pre-installed Fans – Rear
120 mm x 1 ARGB

Radiator Support – Front
120 / 140 / 240 / 280 / 360 / 420 mm
(Limit: 457 × 140 × 27 mm)

Radiator Support – Top
120 / 140 / 240 / 280 / 360 mm

Radiator Support – Rear
120 mm

Clearance – CPU Cooler
170 mm

Clearance – PSU
170 / 210 mm (w/o HDD Cage)

Clearance – Graphics Card (installed 3.5" HDD BRK)
360 / 410 mm (w/o front radiator)

Cable Routing – Behind Motherboard Tray
33–35 mm

Dust Filters
Top, Front, Bottom

Power Supply Support
ATX

Series
Elite Series

Size
Mid Tower
