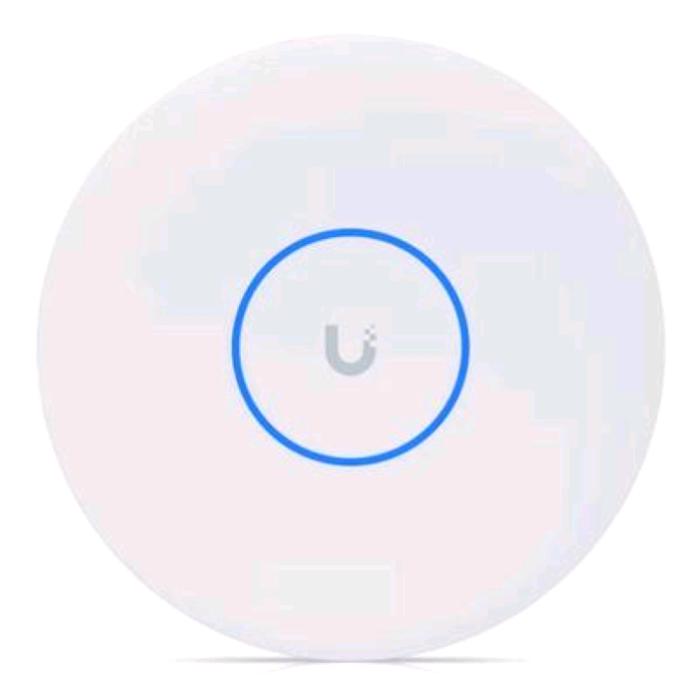

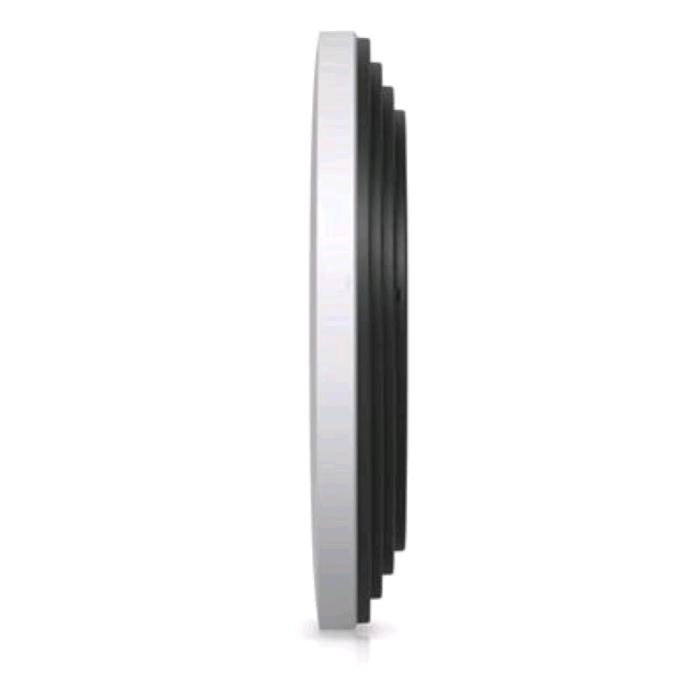

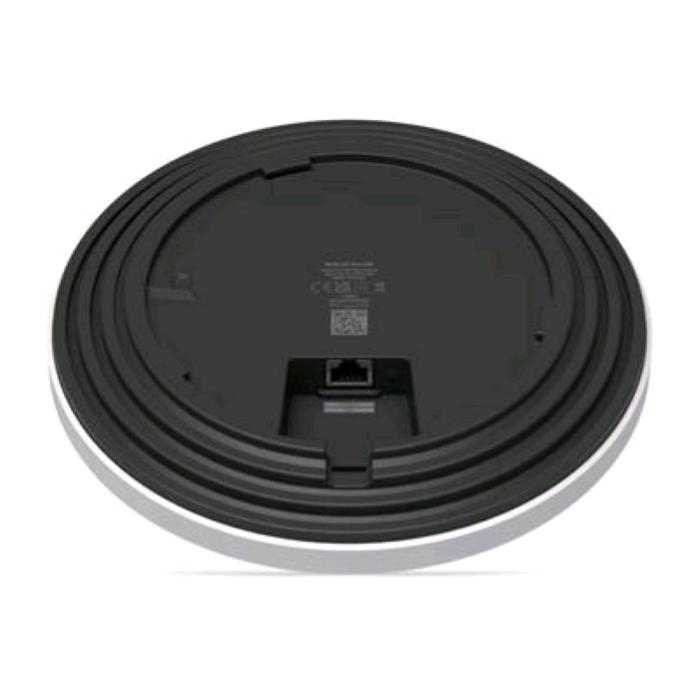

Access Point Wireless UBIQUITI I UNIFI 7 U7-PRO-XG BIANCO A SOFFITTO CON SUPPORTO 10/5/2.5/1 GBE ALIMENTAZIONE: PoE++ BANDA WIRELESS: 2.4 GHz, 5 GHz, 6 GH
| Prezzo: | €251,90 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 25543 |
| Marca: | Ubiquiti |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
Overview
Dimensions: Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard: WiFi 7
Spatial Streams: 6
Coverage Area: 140 m² (1,500 ft²)
Max. Client Count: 300+
Uplink: 10 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE+
Performance
MIMO:
- 6 GHz: 2 x 2 (DL/UL MU-MIMO)
- 5 GHz: 2 x 2 (DL/UL MU-MIMO)
- 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate:
- 6 GHz: 5.8 Gbps (BW320)
- 5 GHz: 4.3 Gbps (BW240)
- 2.4 GHz: 688 Mbps (BW40)
Antenna Gain:
- 6 GHz: 6 dBi
- 5 GHz: 5 dBi
- 2.4 GHz: 4 dBi
Max. TX Power:
- 6 GHz: 24 dBm
- 5 GHz: 26 dBm
- 2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio
Supported Data Rates:
- 802.11be (WiFi 7): 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) // 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
- 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
- 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
- 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Features
Wireless Meshing: ?
Band Steering: ?
802.11v BSS Transition Management: ?
802.11r Fast Roaming: ?
802.11k Radio Resource Management (RRM): ?
Advanced Radio Management: ?
Passpoint (Hotspot 2.0): ?
Captive Hotspot Portal:
- Custom Branding Landing Page: ?
- Voucher Authentication: ?
- Payment-Based Authentication: ?
- External Portal Server Support: ?
- Password Authentication: ?
- Guest Network Isolation: ?
Private Pre-Shared Key (PPSK): ?
WiFi Speed Limiting: ?
Client Device Isolation: ?
WiFi Schedules: ?
RADIUS over TLS (RadSec): ?
Dynamic RADIUS-assigned VLAN: ?
Hardware
Max. Power Consumption: 22W
Supported Voltage Range: 42.5—57V DC
Networking Interface: 1x 10 GbE RJ45 port
Weight: 750 g (1.7 lb)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
LEDs: System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant: ?
Certifications: CE, FCC, IC
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F)
Ambient Operating Humidity: 5 to 95% noncondensing
Software
Application Requirements:
- UniFi Network
- Version 9.0.114 and later (U7 Pro XG - White)
- Version 9.1.120 and later (U7 Pro XG - Black)
