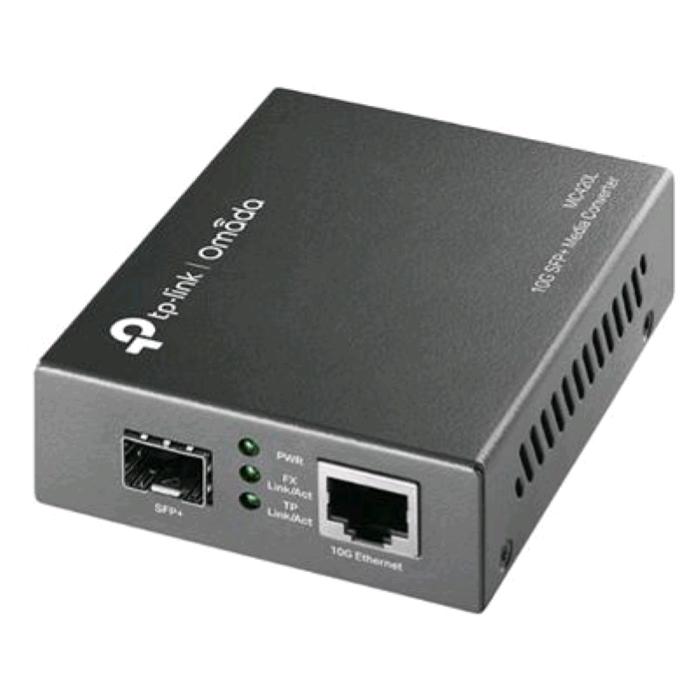

MEDIA CONVERTER TP-LINK MC420L 10G MULTI-GIGABIT RJ45 A 10G SFP+ SLOT
| Prezzo: | €60,50 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 25117 |
| Marca: | Tp-link |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
Standard & protocolli
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Funzionalità di base
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module
Porte
1× SFP+ port
1× 1G/2.5G/5G/10Gbps RJ45 port
Lunghezza d'onda
Depends on the used SFP module
Network Media 10GBASE-R
Multi-mode/Single-mode SFP+ module
Network Media 10GBASE-T
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m)
10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
Dimensioni (L x P x A)
94.5 x 73.0 x 27.0 mm
Alimentazione
External Power Adapter
Massimo consumo di energia
4.12W
LED
PWR, Link/Act
Sicurezza & emissioni
UL, RoHS
Package Content
MC420L
Power Adapter
Installation Guide
Ambiente
Operating Temperature: 0?~50? (32?~122?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%RH~90%RH Non-condensing
Storage Humidity: 5%RH~90%RH Non-condensing
