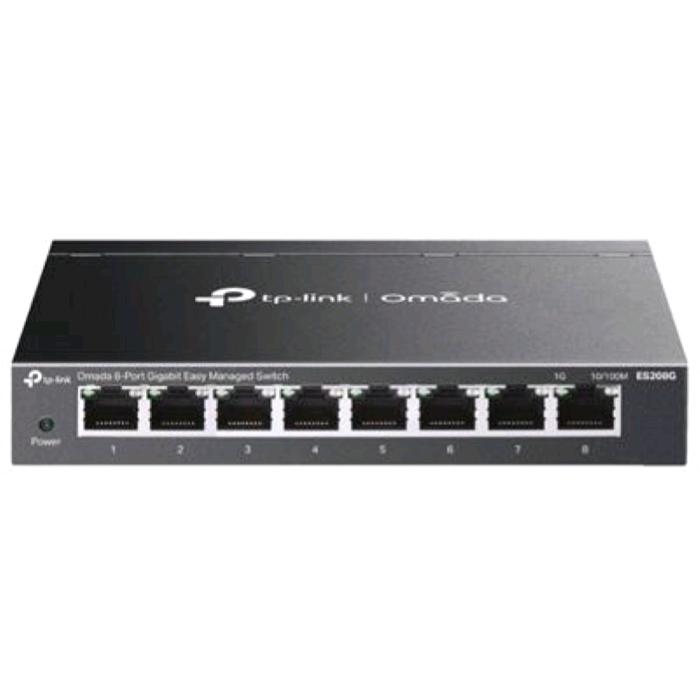

HUB SWITCH 8 PORTE GIGABIT TP-LINK ES208G EASY MANAGED - CUST.IN ACCIAIO X DESKTOP (INTEG,CONTR.OMADA SDN)
| Prezzo: | €43,70 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 25255 |
| Marca: | Tp-link |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
CARATTERISTICHE HARDWARE
Interfaccia:
- 8× 10/100/1000 Mbps RJ45 Ports
- Auto-Negotiation/Auto MDI/MDIX
Numero ventole: Fanless
Installation:
- Desktop
- Wall Mount
Physical security lock: v
Alimentazione: DC Power Adapter (Output: 5VDC / 0.6A)
Dimensioni (L x P x A): 158 × 101 × 25 mm
Surge Protection: ±6kV
PRESTAZIONI
Capacità di switching: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4 Mbit
Jumbo frame: 15 KB
CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
• Port-based/802.1p/DSCP QoS
• 8 Priority Queues
• Priority Schedule Mode
- WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
- Port-Based Rating Limit
• Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control?
Funzionalità L2:
• Static Link Aggregation
• Loop Prevention / Loopback Detection
• Flow Control
- 802.3x Flow Control
• Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
• Port Statistics
- Port Mirror Status
- Traffic Statistics
• 802.1ab LLDP
L2 Multicast:
• IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
• MTU VLAN
• Port-Based VLAN
• 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Metodo di trasmissione: Store-And-Forward
GESTIONE
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
• Omada Cloud-Based Controller
• Omada Hardware Controller
• Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
• Web-based GUI
• DHCP Client
• Cable Diagnostics
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Unified Configuration
ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
- ES208G
- Power Adapter
- Rubber Feet
- Installation Guide
Ambiente:
- Operating Temperature: -5?~45? (23?~113?)
- Storage Temperature: -40?~70? (-40?~158?)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
