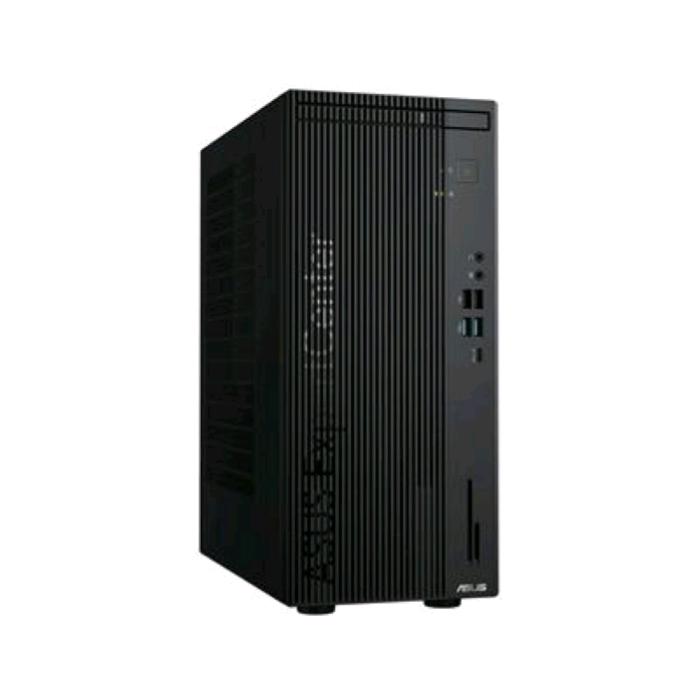

PERSONAL COMPUTER ASUS MINI TOWER B700MFES-005225005X BLK ULTRA5-225 16DDR5 512SSD W11PRO 1YOS ODD WIFI BT RJ45 HDMI VGA DP 10USB T+M

Part No
90PF05D1-M00T00

Sales Model Name
B700MFES-005225005X

ASUS ExpertCenter B700 Mini Tower combina prestazioni elevate, sicurezza di livello enterprise e funzionalità di gestione avanzate in un design compatto ed elegante, offrendo agli utenti business orientati all’AI uno spazio di lavoro flessibile e organizzato. Progettato per resistere a condizioni impegnative e conforme agli standard militari statunitensi MIL-STD-810H, è dotato di uno chassis espandibile, che garantisce affidabilità nel lungo periodo e aggiornamenti pratici e convenienti per i professionisti.

EAN Code
4711636429986

UPC Code
199291429987

WEEE
5.997

Base Unit
VSPF05D1-BU0010

Size
15L

Color
Black

Form Factor
Mini tower

Operating System
Windows 11 Pro

Office
1-month trial for new Microsoft 365 customers. Credit card required.

Processor
Intel Core Ultra 5 Processor 225 3.3 GHz (20MB Cache, up to 4.9GHz, 10 cores, 10 Threads)
N/A

Neural processor
Intel AI Boost NPU

CPU Cooler
Air Cooler

Chipset
Intel B860 Chipset

DIMM Memory
16GB DDR5 U-DIMM

Memory Speed
Memory speed is 5600 MT/s, but clock down by processor setting.

Memory Max.
128GB

Integrated GPU
N/A

Storage
512GB M.2 2280 NVMe PCIe 4.0 SSD

Optical Drive
DVD writer 8X

LAN
Intel WGI219V 10/100/1000 Mbps, non-vPro

Audio
High Definition 7.1 Channel Audio

Wireless
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth 5.4 Wireless Card

Power Supply
Power Supply: 330W power supply (80+ Platinum, peak 660W)

Rear I/O Port
1x RJ45 Gigabit Ethernet
1x HDMI 1.4
1x VGA Port
1x Displayport 1.4
1x 7.1 channel audio (microphone, line-out, Line-in)
1x Kensington lock
1x Padlock loop
3x USB 2.0 Type-A
2x USB 3.2 Gen 1 Type-A
1x FLEX I/O port (DP1.4 HBR3)

Front I/O Port
1x Headphone
1x 3.5mm combo audio jack
2x USB 2.0 Type-A
1x USB 3.2 Gen 2 Type-C
2x USB 3.2 Gen 2 Type-A

Drive Bay
2.5" x 1
3.5" x 1

Serial ATA
Serial ATA: 4 x SATA 6.0Gb/s ports

Expansion Slot (includes used)
1x PCIe 3.0 x 1
1x PCIe 4.0 x 16
1x M.2 2280 connector for storage
1x M.2 2280/2230 connector for storage
1x M.2 connector for WiFi
4x DDR5 U-DIMM slot

Keyboard & Mouse
Wired keyboard (USB)
Wired optical mouse (USB)

Accessory
Accessory:

Dimension (WxDxH)
Dimension (WxDxH): 15.50 x 29.60 x 34.70 cm (6.10" x 11.65" x 13.66")

Weight
Weight: 06.00 kg (13.23 lbs)

My ASUS features
System diagnosis
Fan profile
AppDeals
Link to MyASUS

MyExpert Features
MyExpert Features: ExpertMeet(All)

Built-in Apps
AI ExpertMeet (AI features need devices with 12GB RAM or more)
MyASUS
ASUS Business Manager

Adobe Creative Cloud Hard Bundle
1-month Adobe Creative Cloud Hard Bundle
Terms and exclusions apply. Offer only available in eligible markets. Eligible markets are determined at activation, and varies by region, device, and time.

Security
Discrete Trusted Platform Module (TPM) 2.0
HDD User Password Protection and Security
Kensington Security Slot (7x 3mm)
Padlock loop

Antivirus
Antivirus: McAfee 30 days free trial

TPM
TPM:

Ecolabels & Compliances
EPEAT Gold
EPEAT Gold with Climate+
Energy star 9.0
REACH
RoHS

Base Warranty
1Y OnSite Service

Recommended Warranty Package Part number//Extension and/or upgrade service from base warran
ACX13-006834PF//3Y Extension
4Y OnSite Service(Next Business Day)*upgrade
ACX13-006844PF//4Y Extension
5Y OnSite Service(Next Business Day)*upgrade

Sustainable Material_Front bezel
65% PCR recycled plastic front bezel

Sustainable Material_I/O bezel
65% PCR recycled plastic I/O bezel
