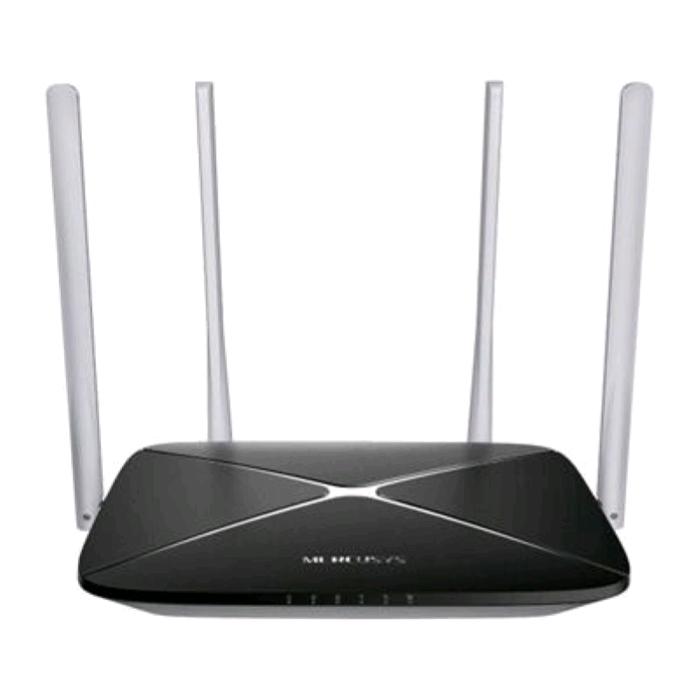

Router Wireless MERCUSYS MB135-4G -300MBPS 4G LTE WI-FI AC1200 ,1xSim,2.4GHZ/867MBPS 5GHZ -3P 10/100M +1P 10/100M WAN/LAN - 2ANT.LTE-2ANT.FISS.

Wireless
Network Type:
EU
- FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
- TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA+/UMTS: B1/B5/B8 (2100/850/900 MHz)
Wi-Fi Class: AC1200
Wi-Fi (2.4 GHz): 300 Mbps
Wi-Fi (5 GHz): 867 Mbps
Wireless Standards: IEEE 802.11ac/a/b/g/n
Frequency: 5 GHz, 2.4 GHz
Reception Sensitivity:
- 11g 6Mbps: -95dBm
- 11g 54Mbps: -77dBm
- 11n HT20 MCS7: -74dBm
- 11n HT40 MCS7: -71dBm
- 11a 6Mbps: -92dBm
- 11a 54Mbps: -75dBm
- 11ac VHT20 MCS8: -70dBm
- 11ac VHT40 MCS9: -65dBm
- 11ac VHT80 MCS9: -61dBm
Transmission Power:
- 2.4 GHz < 20dBm (EIRP)
- 5 GHz < 23dBm (EIRP)
Wireless Security: WPA-PSK / WPA2-PSK
Wireless Functions:
- smart connect
- WPS
- Wireless Schedule
- Wireless Clients Statistics

Software
Operation Modes:
- 3G/4G Router
- Wireless Router
Cellular Mode:
- 4G Preferred
- 4G Only
- 3G Only
Cellular APN:
- Data Roaming
- Network Search
- Profile Create
- APN Settings
- ISP File Upgrade
- PIN Management
WAN Mode:
- Dynamic IP
- Static IP
- PPPoE
- PPTP
- L2TP
DHCP:
- Server
- DHCP Client List
- Address Reservation
NAT Forwarding:
- ALG
- Virtual Server
- Port Triggering
- UPnP
- DMZ
Protocols:
- IPv4
- IPv6
Data Settings:
- Data Statistics
- Data Limit
Guest Network:
- 2.4 GHz Guest Network
- 5 GHz Guest Network
Parental Controls:
- Time Control
- Website Filtering
DDNS:
- MERCUSYS DDNS
- DynDns
- NO-IP
VPN Sever:
- OpenVPN
- PPTP
- VPN Connections
SMS:
- Inbox
- New Message
- Outbox
- Drafts
QoS: v
Security:
- IPv4 SPI Firewall
- DoS Protection
- Service Filtering
- Access Control
- IP & MAC Binding
- IPv6 Firewall
System Settings:
- Time Settings
- LED Control
- Diagnostics
- Firmware Upgrade
- Backup&Restore
-Reboot
- Administration
- System Log
- CWMP Settings
- SNMP Settings
- Traffic Monitor
Device Management:
- MERCUSYS APP
- Web GUI
System Language: English, German, Spanish, Greek, French, Italian, Polish, Indonesian, Russian, Thai
TR-069: v

Hardware
Dimensioni (W x D x H):
- 219 × 140 × 32 mm
- 8.62 × 5.51 × 1.26 in

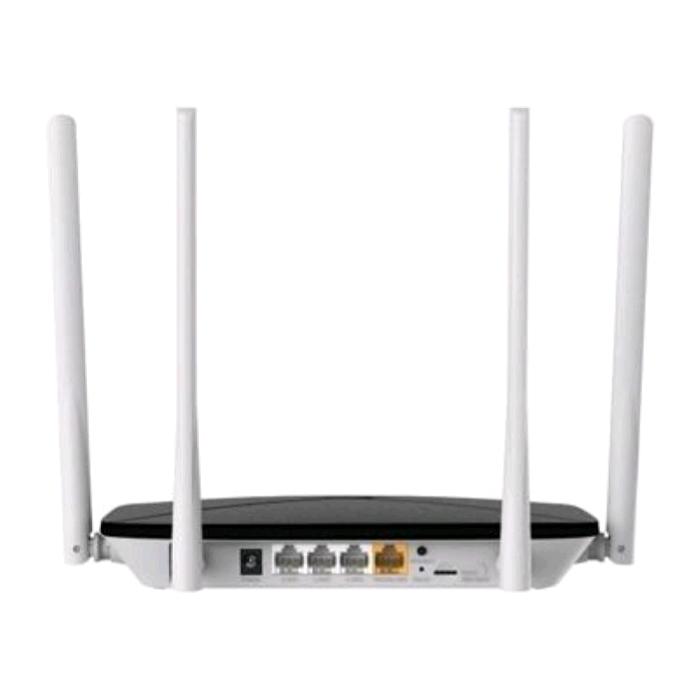

Interfaces:
- 1× 10/100Mbps LAN/WAN Port
- 3× 10/100Mbps LAN Ports
- 1× Nano SIM Card Slot
Antenna:
- 2× External Detachable 4G LTE Antennas
- 2× External Wi-Fi Antennas
Button:
- WPS/Wi-Fi
- Reset Button
External Power Supply: 12V/1A
LED:
- 1× Power
- 1× Internet
- 1× LAN
- 3× Signal
Ethernet Ports:
- 1× 10/100 Mbps LAN/WAN Port
- 3× 10/100 Mbps LAN Ports
LTE Standard:
- Cat 4
- 150/50Mbps DL/UL

Altro
Package Contents:

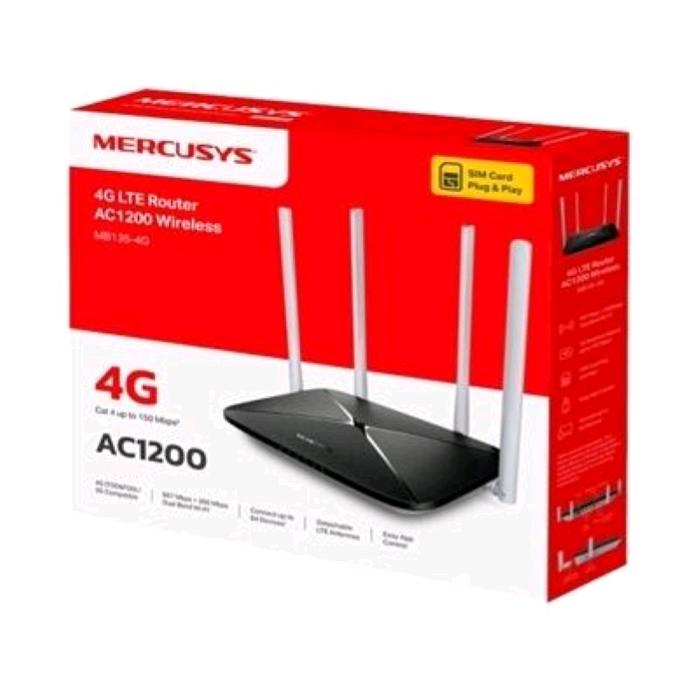

- AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
Environment:
- Operating Temperature: 0°C~40°C (32°F~104°F)
- Storage Temperature: -40°C~60°C (-40°F~140°F)
- Operating Humidity: 10%~90% Non-Condensing
- Storage Humidity: 5%~90% Non-Condensing
