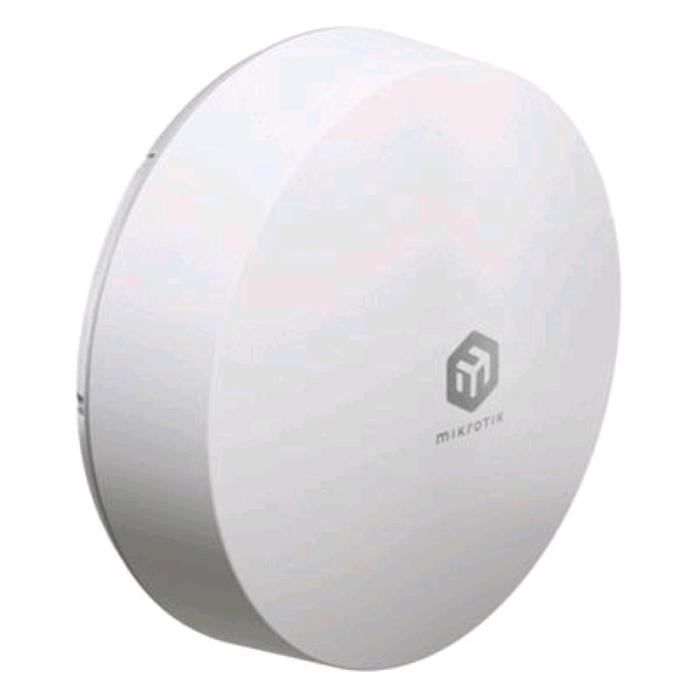

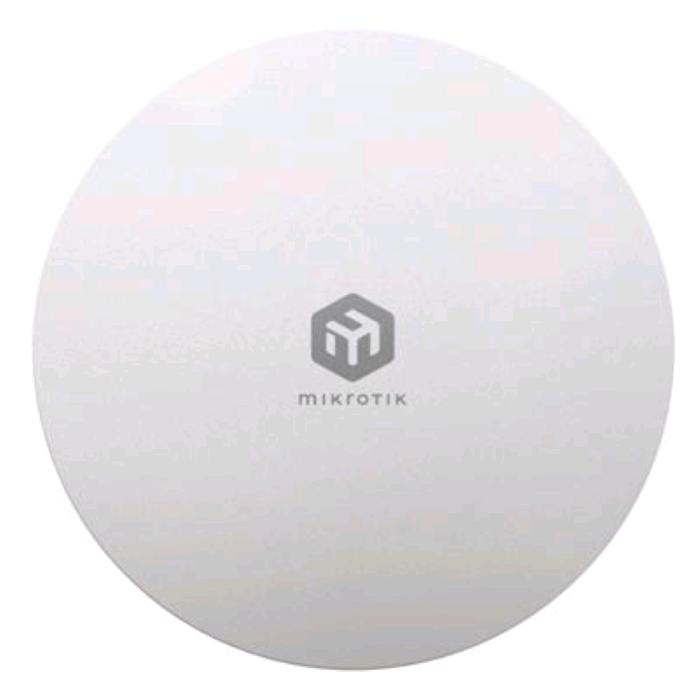

ROUTER ESTERNO LTE 5G MIKROTIK ATLGM&RG520F-EU ATL 5G R16 1P GIGABIT 1 SLOT MICRO SIM 1P USB2.0 MIMO 4X4 IP66,WAN: 5G PORTE LAN: 1 BANDA WIRELESS: 2.4 GHz
| Prezzo: | €362,00 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 25144 |
| Marca: | Mikrotik |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
Specifications
Product code: ATLGM&RG520F-EU
Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 3
Size of RAM: 512 MB
Storage size: 32 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 10 W
Max power consumption without attachments: 10 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 12-56 V
Mobile
3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO DL: 4x4
LTE FDD bands: 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 1 (2100MHz) / 32 (1500 MHz)
LTE TDD bands: 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz)
5G NSA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G NSA TDD bands: 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 76 (1500 MHz) / 38 (2600 MHz) / 75 (1500 MHz)
5G SA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G SA TDD bands: 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
TAC: 86945405
Ethernet
10/100/1000 Ethernet ports: 1
Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1
Peripherals
Number of SIM slots: 1 Modem (Micro SIM)
Number of M.2 slots: 1
Other
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 66
Product code: ATLGM&RG520F-EU
Architecture: ARM 64bit
CPU: 88F3720
CPU core count: 2
CPU nominal frequency: 800 MHz
RouterOS license: 3
Size of RAM: 512 MB
Storage size: 32 MB
Storage type: FLASH
Tested ambient temperature: -40°C to 70°C
Powering
Number of DC inputs: 1 (PoE-IN)
Max power consumption: 10 W
Max power consumption without attachments: 10 W
Cooling type: Passive
PoE in: 802.3af/at
PoE in input Voltage: 12-56 V
Mobile
3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)
LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
MIMO DL: 4x4
LTE FDD bands: 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 1 (2100MHz) / 32 (1500 MHz)
LTE TDD bands: 40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz)
5G NSA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G NSA TDD bands: 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 76 (1500 MHz) / 38 (2600 MHz) / 75 (1500 MHz)
5G SA FDD bands: 1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)
5G SA TDD bands: 38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)
TAC: 86945405
Ethernet
10/100/1000 Ethernet ports: 1
Number of 1G Ethernet ports with Reverse PoE (PoE-in): 1
Peripherals
Number of SIM slots: 1 Modem (Micro SIM)
Number of M.2 slots: 1
Other
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 66
