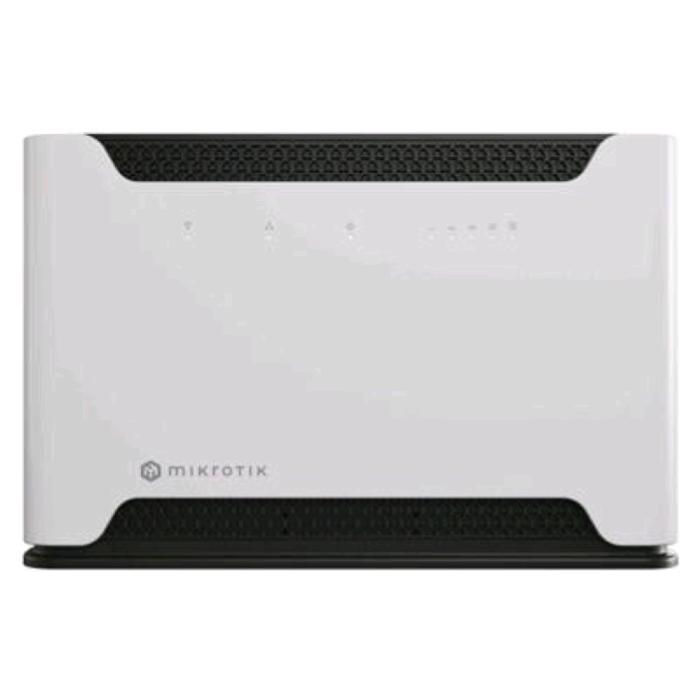

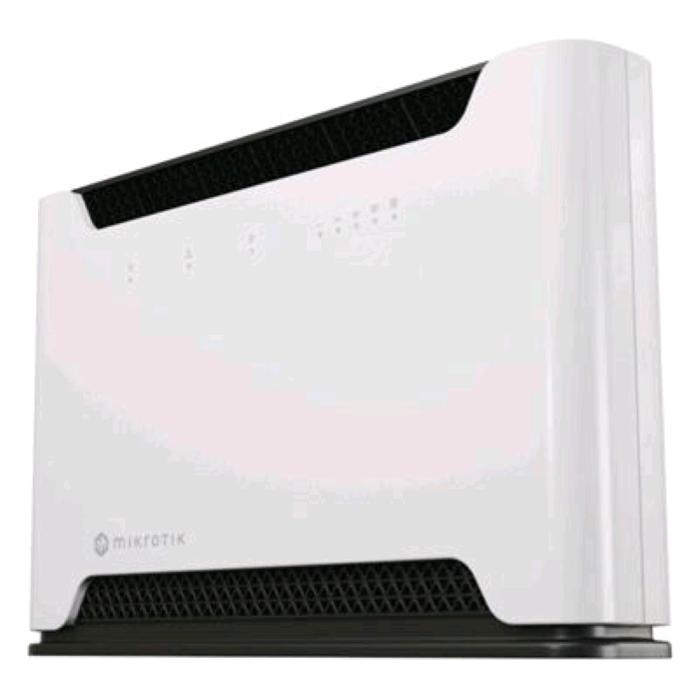

ROUTER Mikrotik 5G D53G-5HACD2HND-TC&RG520F-EU CHATEAU 5G R16 5P. GBPS + DUALBAND AC,WAN: 5G PORTE LAN: 5 BANDA WIRELESS: 2.4 GHz, 5 GHz
| Prezzo: | €459,20 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 22351 |
| Marca: | Mikrotik |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
Specifications
Product code: D53G-5HacD2HnD-TC&RG520F-EU
Architecture: ARM 32bit
CPU: IPQ-4019
CPU core count: 4
CPU nominal frequency: 448-896 (auto) MHz
Switch chip model: IPQ-4019
Dimensions: 240 x 156 x 44 mm
RouterOS license: 4
Operating System: RouterOS v7
Size of RAM: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C
IPsec hardware acceleration: Yes
Powering
Number of DC inputs: 1 (DC jack)
DC jack input Voltage: 12-28 V
Max power consumption: 25 W
Max power consumption without attachments: 15 W
Cooling type: Passive
Mobile
3G Category: R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
3G bands: 5 (850MHz) / 8 (900MHz) / 1 (2100MHz)
LTE Category: 20 (2.0 Gbps Downlink, 200 Mbps Uplink)
LTE FDD bands: 5 (850MHz) / 20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 1 (2100MHz) / 7 (2600MHz) / 8 (900 MHz) / 32 (1500 MHz)
LTE TDD bands: 40 (2300MHz) / 41 (2500MHz) / 42 (3500MHz) / 43 (3700MHz) / 38 (2600MHz)
5G NSA FDD bands: 5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz)
5G NSA TDD bands: 75 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 76 (1500 MHz)
5G SA FDD bands: 5 (850 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz) / 3 (1800 MHz) / 1 (2100 MHz) / 7 (2600 MHz)
5G SA TDD bands: 76 (1500 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 38 (2600 MHz) / 78 (3500 MHz) / 75 (1500 MHz)
TAC: 86945405
Wireless specifications
Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz number of chains: 2
Wireless 2.4 GHz standards: 802.11a/b/g/n
Antenna gain dBi for 2.4 GHz: 3
Wireless 2.4 GHz chip model: IPQ-4019
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 5.5
Wireless 5 GHz chip model: IPQ-4019
Wireless 5 GHz generation: Wi-Fi 5
Ethernet
10/100/1000 Ethernet ports: 5
Peripherals
Number of SIM slots: 1 Modem (Micro SIM)
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1
Number of M.2 slots: 1
Other
Mode button: Yes
Certification & Approvals
Certification: CE, EAC, ROHS
IP: 20
