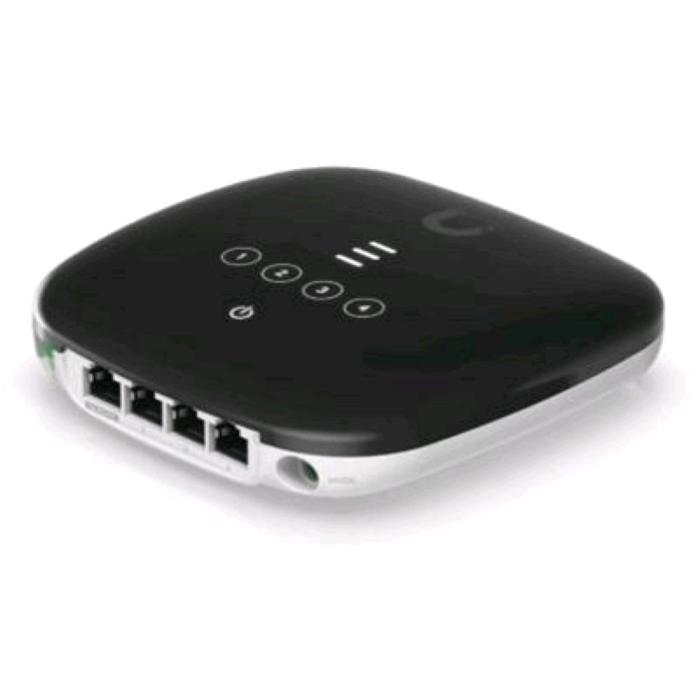

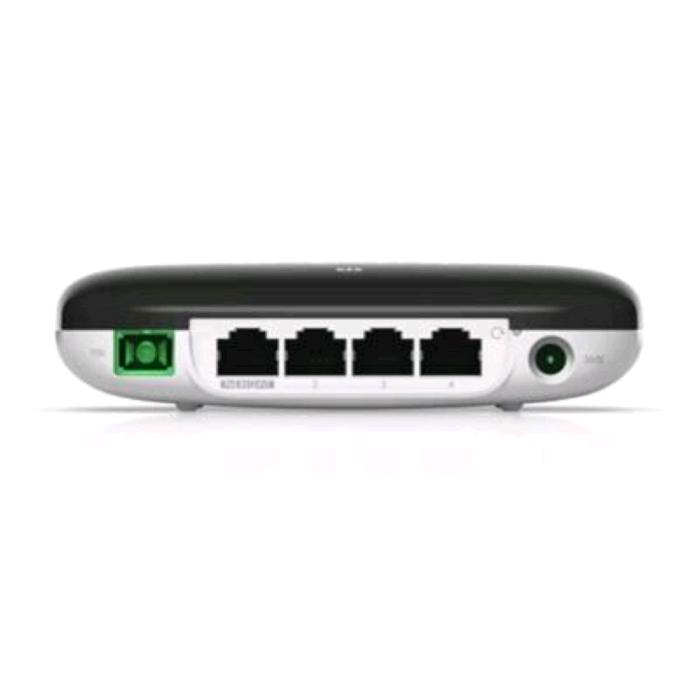

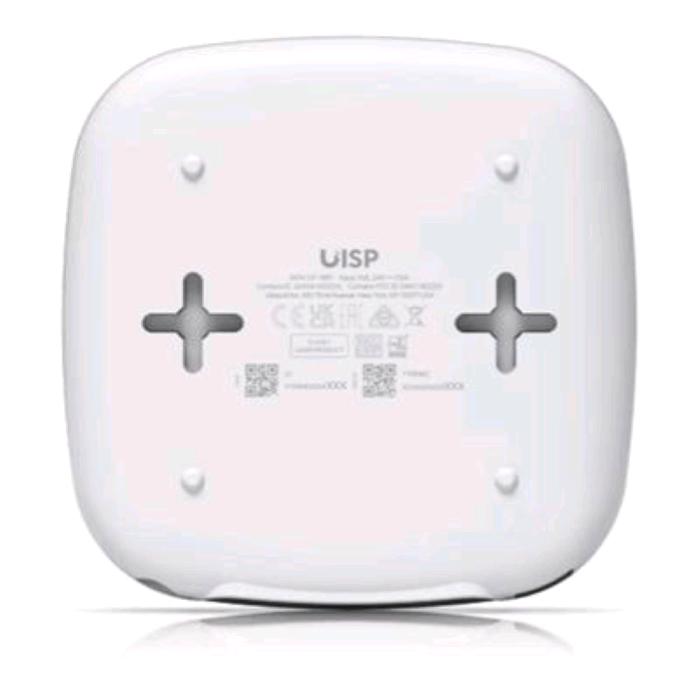

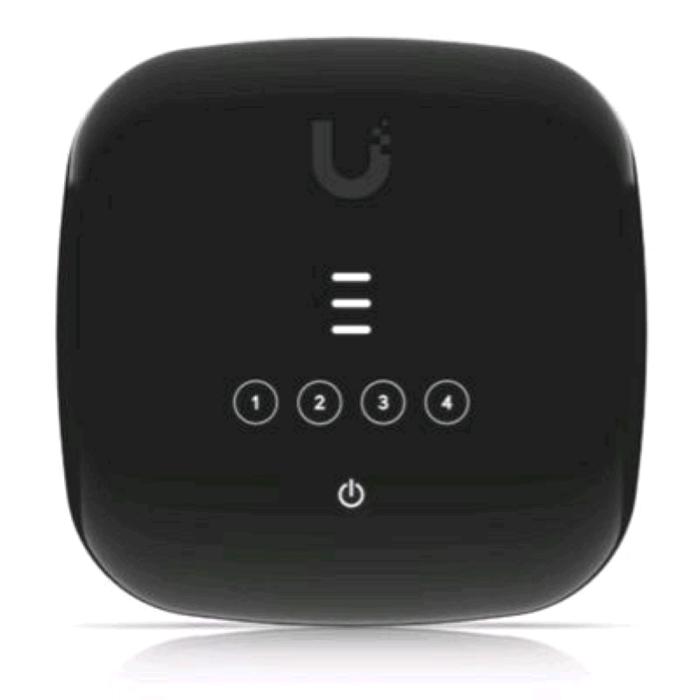

ROUTER WIRELESS CPE GPON UBIQUITI UF-WIFI-EU UFIBER 4P LAN -POE INJECTOR INCLUSO per portare la connessione in fibra ottica (GPON) direttamente a casa o in ufficio
| Prezzo: | €82,80 Iva inclusa (22%) |
|---|---|
| Cod. art.: | 25148 |
| Marca: | Ubiquiti |
| Disponibilità: | Ordinabile (2/4 giorni lav.) |
| Quantità: |
Servizi
StampaDescrizione
Mechanical
Dimensions: 126.3 × 126.1 × 31.7 mm (5 × 5 × 1.3")
Weight: 190 g (6.7 oz)
Enclosure Material: UV-stabilized polycarbonate (PC110U)
Hardware
Networking Interface
- (1) SC/APC, ITU-G.984 GPON WAN port
- (4) GbE RJ45 LAN ports
WiFi: 802.11n
Management Interface:
- Ethernet In-Band
- PON
Power Method:
- DC Jack, 24V DC
- 24V Passive PoE (Pins 4, 5+; 7, 8-)
Power Supply: Universal AC/DC adapter, 100–240V AC, 50/60 Hz, 24V/0.5A
Supported Voltage Range:
- 10–30V DC (passive PoE)
- 5V DC (adapter)
Max. Power Consumption: 7W
Total Non-blocking Line Rate:
- Downstream: 2.488 Gbps
- Upstream: 1.244 Gbps
Normal Range of Optical Module:
- TX: 1.5 to 5 dBm
- RX: -8 to -28 dBm
Max. WiFi TX Power:
- 2.4 GHz: 20 dBm
MIMO:
- 2.4 GHz: 2 × 2
Max. WiFi Radio Rate:
- 2.4 GHz: 300 Mbps
Antenna Gain:
- 2.4 GHz: 1 dBi
Button: (1) Factory reset
Ambient Operating Temperature: -10 to 45 °C (14 to 113 °F)
Ambient Operating Humidity: 10 to 90% noncondensing
Certifications: FCC, IC, CE
NDAA Compliant: Yes
LEDs
PON Status:
- (3) Signal LEDs
- All-OFF: bootup
- 1× red: signal too low (< -28 dB)
- 1× white: signal low (= -28 dB)
- 2× white: signal good (= -25 dB)
- 3× white: signal strong (= -11 dB)
- 1× red + 2× white: signal too strong (= -8 dB)
- 3× red: no signal
- LEDs alternate between 3× red and a signal strength indicator: No authority
Ethernet:
- Steady white: link up
- Blinking white: activity
- OFF: link down
Power: White: ON
Software
Mode: ONU/ONT layer 2/3 Ethernet switch
Services: Web server, telnet, NAT, bridging and routing, firewall features, and application passthrough features
Utilities: Dashboard, monitoring, alarms, and logs
Other: Remote reset, remote reboot, remote firmware upgrade, VLAN support
Security: GEM Port Encryption
Ubiquiti Specific Features: UISP Mobile App
WiFi Standards: 802.11 b/g/n
Wireless Security: WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3, TKIP/AES)
Fiber
Operating Wavelength:
- TX: 1310 nm
- RX: 1490 nm
Line Code: Scrambled NRZ
Optical Interface Nominal Bit Rate:
- Downstream: 2488.32 Mbit/s
- Upstream: 1244.16 Mbit/s
Physical Reach: 20 km
Supported Data Rates
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4): 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
