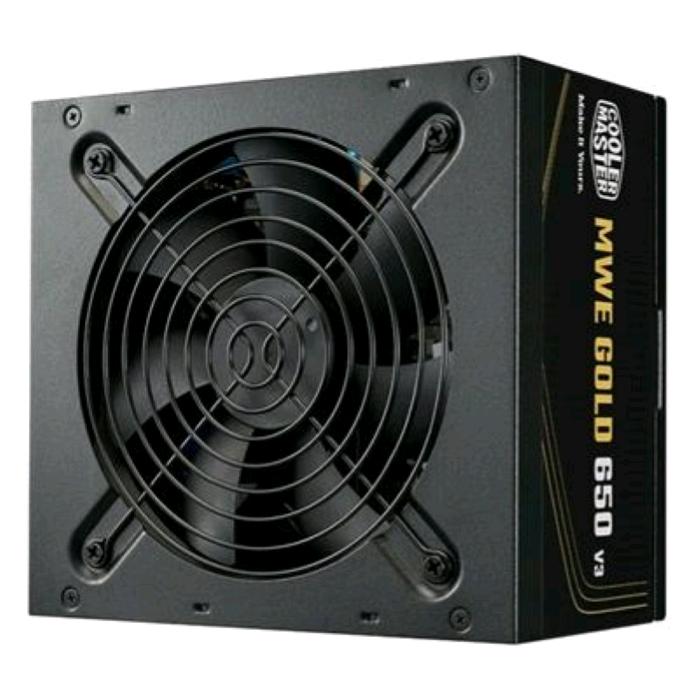

ALIMENTATORE COOLER MASTER 650W MWE GOLD V3 U PFC-ATTIVO 80+ 240VAC NON MODULARE FAN 120MM 140X150X86MM (MPE-6502-ACAAG-3BEU )

Descrizione

ATX Version
ATX 12V Ver. 3.1

PFC
Active PFC

Input Voltage
100-240V

Input Current
10-5A

Input Frequency
50-60Hz

Dimensions (L x W x H)
140 x 150 x 86 mm

Fan Size
120mm

Fan Bearing
HDB

Fan Speed
2400 RPM

Efficiency
=90% @ Typical Load

80 PLUS Rating
80 PLUS Gold

ErP 2014 Lot 3
Yes

Operating Temperature
0-40°C

Power Good Signal
100 - 150 ms

Hold Up Time
=16ms at 80% Load

MTBF
>100,000 Hours @ 25°C ambient

Protections
UVP
OVP
OPP
OTP
SCP
OCP

Regulatory
cTUVus
TUV
CE
FCC
BSMI
CCC
EAC
RCM
UKCA
RoHS2.0 / BIS
KC

ATX 24 Pin Connectors
1

EPS 8 Pin / 4+4 Pin Connectors
2

PCI-e 6+2 Pin Connectors
4

SATA Connectors
6

Peripheral 4 Pin Connectors
3

Series
MWE Gold Series

Modular
Non Modular

Form Factor
ATX

80 Plus Efficiency
Gold
