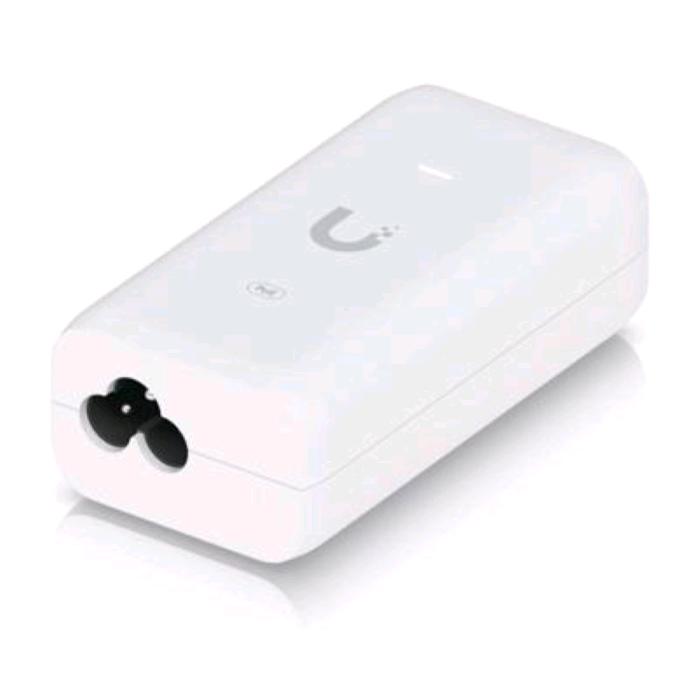

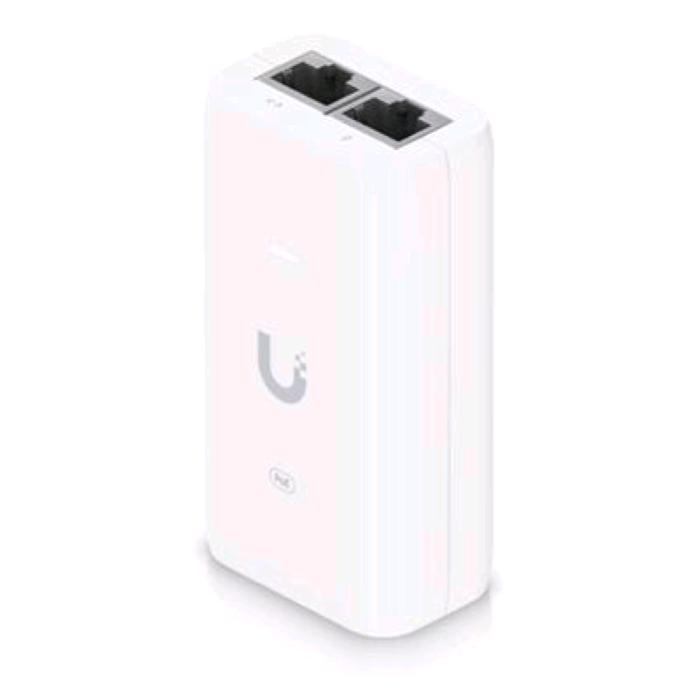

ACCESSORI UBIQUITI Injector POE GBPS U-POE (15W) (U-POE-EU)

Descrizione

Dimensions: 86 x 46 x 33 mm (3.4 x 1.8 x 1.3")
Weight: 100 g (3.5 oz)
Output voltage: 48V DC @ 0.32A
LAN activity indicator: No
Gigabit LAN port: Yes
Remote reset capability: No
Reset button: No
Rated voltage: 100—240V AC @ 50/60Hz
Input current: 500mA max.
Inrush current: <100A peak at 25°C
Efficiency: 84.25+%
Output ripple: 200mV p-p
Switching frequency: 65 kHz
Line regulation: = 3%
Load regulation: = 5%
2-pair powering: Pins 4, 5 (+) and 7, 8 (-)
4-pair powering: No
AC connector: IEC-320 C6
Data In / PoE: RJ45 shielded socket
Surge protection: Difference and common mode
Clamping protection: 11V data, 60V power
Max. surge discharge: 1500A (8/20 µs) power
Peak pulse current: 36A (10/1000 µs) data
Shunt capacitance: <5 pF data
Response time: <1 ns
Ambient operating temperature: 0 to 40° C (32 to 104° F)
Storage temperature: -30 to 70°C (-22 to 158° F)
Ambient operating humidity: 10 to 95% noncondensing
Certifications: CE, FCC, IC, UL
