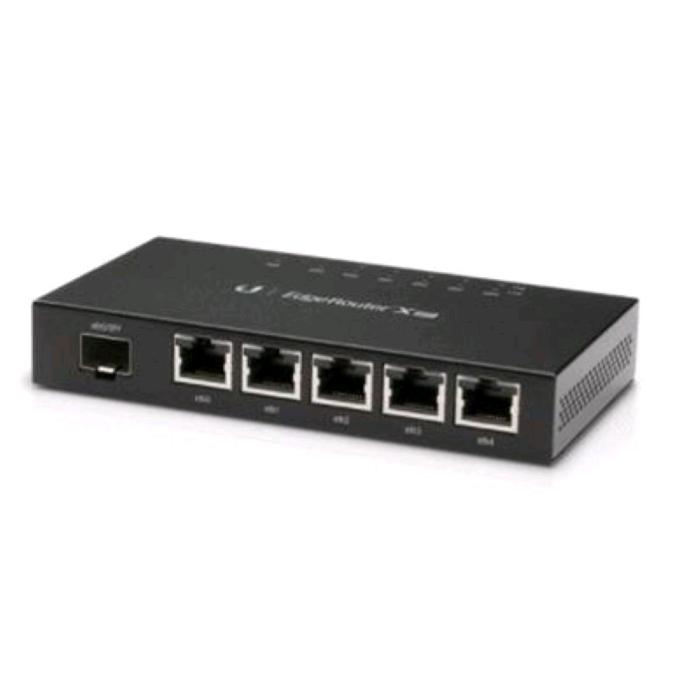

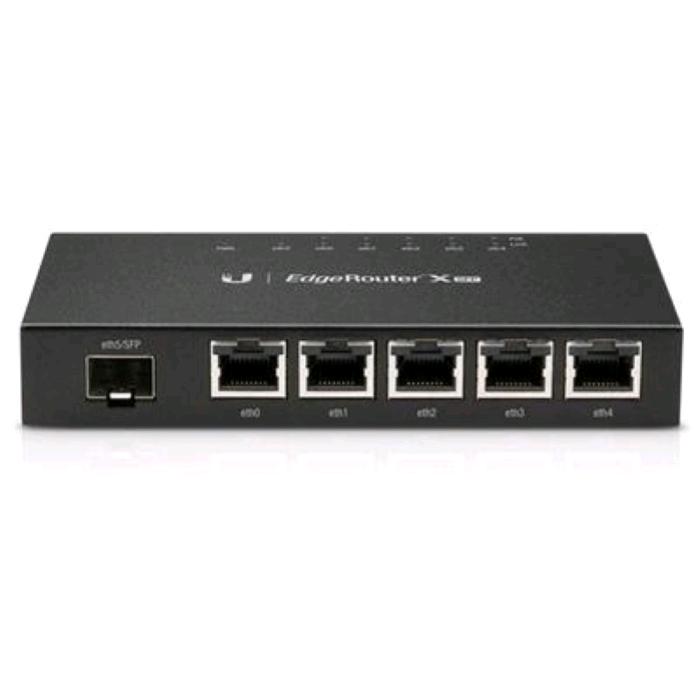

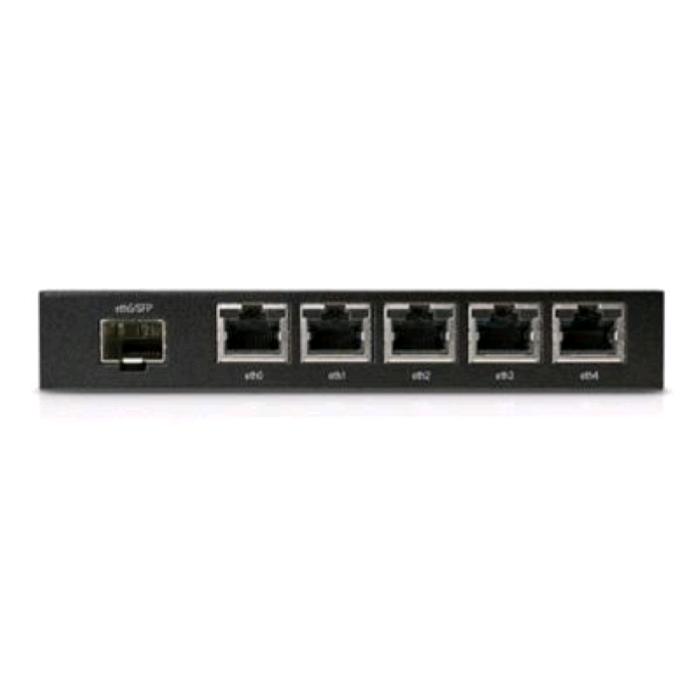

ROUTER Ubiquiti EDGE ROUTER UBIQUITI ER-X-SFP 6P POE WAN: Ethernet • PORTE WAN: 5 • PORTE LAN: 5 • PORTE SFP: 1

Descrizione

Mechanical
Dimensions: 142 x 75 x 23 mm (5.59 x 2.95 x 0.91")
Weight: 215 g (7.58 oz)

Hardware
Processor: Dual-Core 880 MHz, MIPS1004Kc
Memory: 256 MB DDR3 RAM
Code Storage: 256 MB NAND
Max. Power Consumption: 5W
Power Input: 24VDC, 2.5A Power Adapter (Included)
Power Supply: External AC/DC Adapter
Supported Voltage Range: 9 to 26VDC
Buttons: Reset
LEDs: Power, Link/Activity (6), PoE (5)
Wall Mount: Yes
Operating Temperature: -10 to 45° C (14 to 113° F)
Operating Humidity: 10 to 90% Noncondensing
Certifications: CE, FCC, IC

Networking Interfaces
Data/PoE Input Port: (5) 10/100/1000 RJ45 Ports
Data Port: (1) 100/1000 SFP Port

PoE with 24VDC Power Adapter
PoE Out Voltage Range: 22-24VDC
Max. PoE Wattage Per Data Port: 12W (24V)
Max. PoE Wattage Combined for All 5 Data Ports: 50W
PoE Method: Passive
